龍門加工中心
1. 機床主要大件:底座、工作臺、立柱橫梁、滑座、滑枕均采用優質樹脂砂造型、高強度優質鑄鐵，具有完善的熱處理工藝過程來消除殘余應力，并布置足夠的加強筋板，保證整機具有足夠的強度、剛性和高穩定性;
2. XY軸采用進口重載滾柱導軌，剛性強、動態精度佳，
3. 三軸傳動采用臺灣產大直徑研磨雙螺母滾珠絲桿，結構緊湊、運動平穩、精度高絲桿支撐采用日本產原裝進口絲桿支撐軸承，兩端預拉伸，消除熱伸長造成的精度損失。組成穩定的高剛性機械傳動系統。
4. 橫梁采用階梯式結構，橫梁截面大，導軌跨距大，主軸中心到導軌面距離短，翻轉力矩小，結構剛性好;
5. 高剛性的臺灣產龍門專用主軸，采用潤滑脂潤滑，可使主軸軸承得到恒定和可靠的潤滑，既經濟環保又實現了長期免保養。
1. Machine main parts: base, table, column beam, slider, ram are made of high-quality resin sand moldinq, high strength high quality cast iron, with perfect heat treatment process to eliminate residual stress. and layout enough reinforcement plate to guarantee the machine has the enough strength, rigidity and high stability.
2. XY axis imports overloaded roller quides, rigidity, excellent dynamic accuracy.
3. Triaxial transmission with double nut ball screw the Taiwan diameter grinding, compact structure smooth motion, high accuracy. The screw support Japan imported screw support bearings, pre-stretched at both ends, eliminating the thermal elongation caused by the loss of accuracy. Form a stable high rigid mechanical transmission system.
4. The bench structure beam, beam section, quide span, spindle center to guide surface distance is short, turning torque is small, good rigidity structure.
5. High rigid Taiwan gantry special spindle, the grease lubrication, can make the spindle bearing get constant and reliable lubrication, both economic and environmental protection to realize long-term free maintenance.
|
標準配置:BT50 主軸 冷卻系統; 自動潤滑系統;氣動系統; 冷熱交換機; 自動排屑系統 全封閉防護罩 |
Optional accessories:斗笠刀庫 圓盤刀庫 鏈?zhǔn)降稁?/span> 第四軸轉臺 主軸油冷 角度銑頭 |
|
Standard accessories:BT50 Spindle Cooling system; Automatic Lubrication Systems;Pneumatic system;Cool-heat exchanger; Chip conveyor Full Cover |

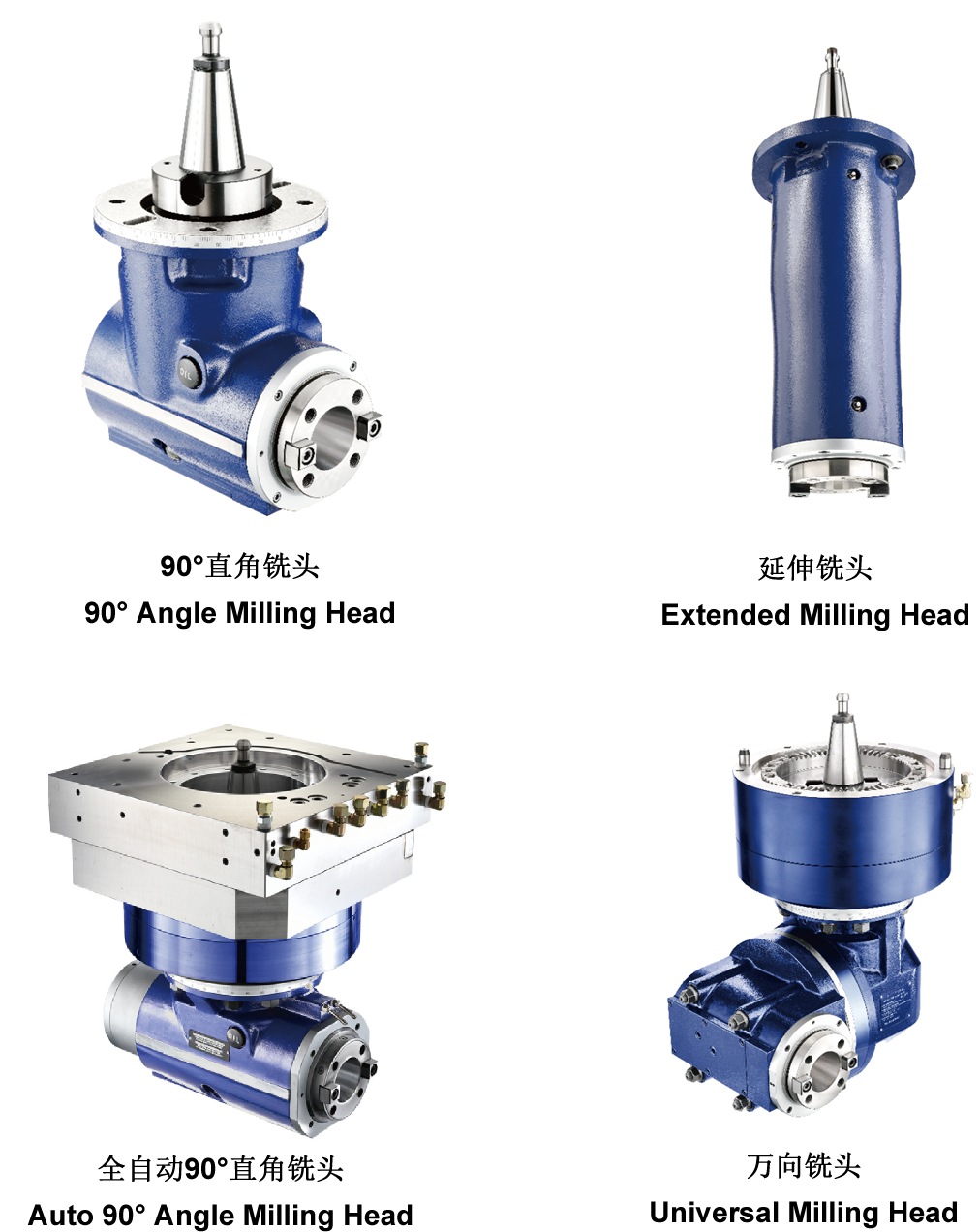

Optional accessories:Arm type Tool Magazine Umbrella Tool Magazine Chain Type Tool Magazine 4-th axis rotary table Oil cooler Angle Milling Head |
|
技術參數 |
Specifications |
Unit |
GM1208 |
GM1210 |
GM1612 |
|
工作臺尺寸 |
Table size(W×L) |
mm |
800×1600 |
1000×1800 |
1200×2000 |
|
工作臺承重 |
Max table load |
mm |
3000 |
3500 |
4000 |
|
龍門寬度 |
Distance between two columns |
mm |
1200 |
1200 |
1600 |
|
T型槽 |
T-slot (No-width×pitch) |
mm |
5-22×140 |
7-22×140 |
7-22×170 |
|
工作臺行程 |
Movement travel of work table |
mm |
1700 |
1900 |
2100 |
|
主軸左右行程 |
Movement travel of Spindle slide |
mm |
1000 |
1200 |
1600 |
|
主軸上下行程 |
Vertical travel of spindle |
mm |
500 |
760 |
800 |
|
主軸鼻端到工作臺距離 |
Spindle nose to table surface |
mm |
110-610 |
110-870 |
115-915 |
|
主軸規格 |
Spindle specifications (Model/Dia.) |
mm |
BT50/Φ155 |
BT50/Φ190 |
BT50/Φ190 |
|
主軸轉速 |
Spindle speed |
rpm |
40-6000 |
40-6000 |
40-6000 |
|
X/Y 軸快移速度 |
X/Y axis Rapid feed speed |
mm |
10000 |
10000 |
10000 |
|
Z 軸快移速度 |
Z axis Rapid feed speed |
mm |
5000 |
5000 |
5000 |
|
X/Y/Z 進給速度 |
X/Y/Z axis rapid traverse |
mm |
5-5000 |
5-5000 |
5-5000 |
|
主電機功率 |
Main motor power |
kw |
15/18.5 |
15/18.5 |
22/27 |
|
X/Y/Z 進給電機扭矩 |
X/Y/Z axis torque |
Nm |
30/22/22 |
30/22/22 |
40/30/30 |
|
X/Y 定位精度 |
X/Y positioning accuracy |
mm |
0.02 |
0.02 |
0.02 |
|
Z 定位精度 |
Z positioning accuracy |
mm |
0.015 |
0.015 |
0.015 |
|
X/Y/Z 重復定位精度 |
X/Y/Z repeatability accuracy |
mm |
0.01 |
0.01 |
0.01 |
|
機床重量 |
Machine weight |
kg |
12500 |
14500 |
25000 |
